Overview
480 LEDs across 5 wavelengths, 194 mW/cm² at 3 inches, and a full accessory kit — door hooks, lifting rope, eye protection — included.
The 2400W panel runs 630nm and 660nm red light alongside 810nm, 830nm and 850nm near-infrared from 480 LEDs. "2400W" is the LED power rating printed on the unit; the panel's actual rated draw is 800W — both figures describe the same panel, not two different products.

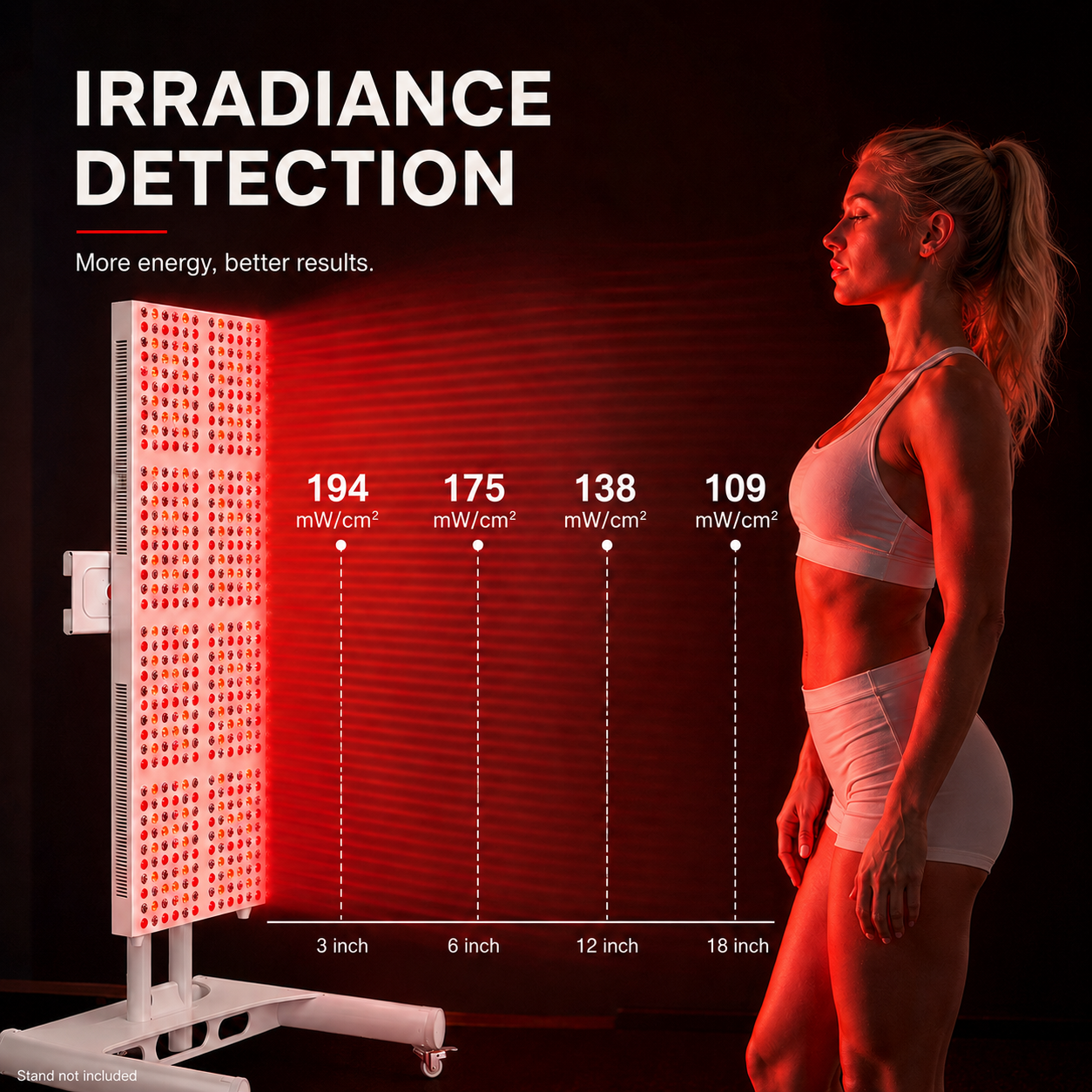

Irradiance at Distance
194 mW/cm² at 3 inches (7.6 cm), 175 at 6 inches (15.2 cm), 138 at 12 inches (30.5 cm), 109 at 18 inches (45.7 cm). A figure without its distance can't be compared to anything — closer sessions run a higher dose in less time, further sessions cover more of the body at once.
Specifications

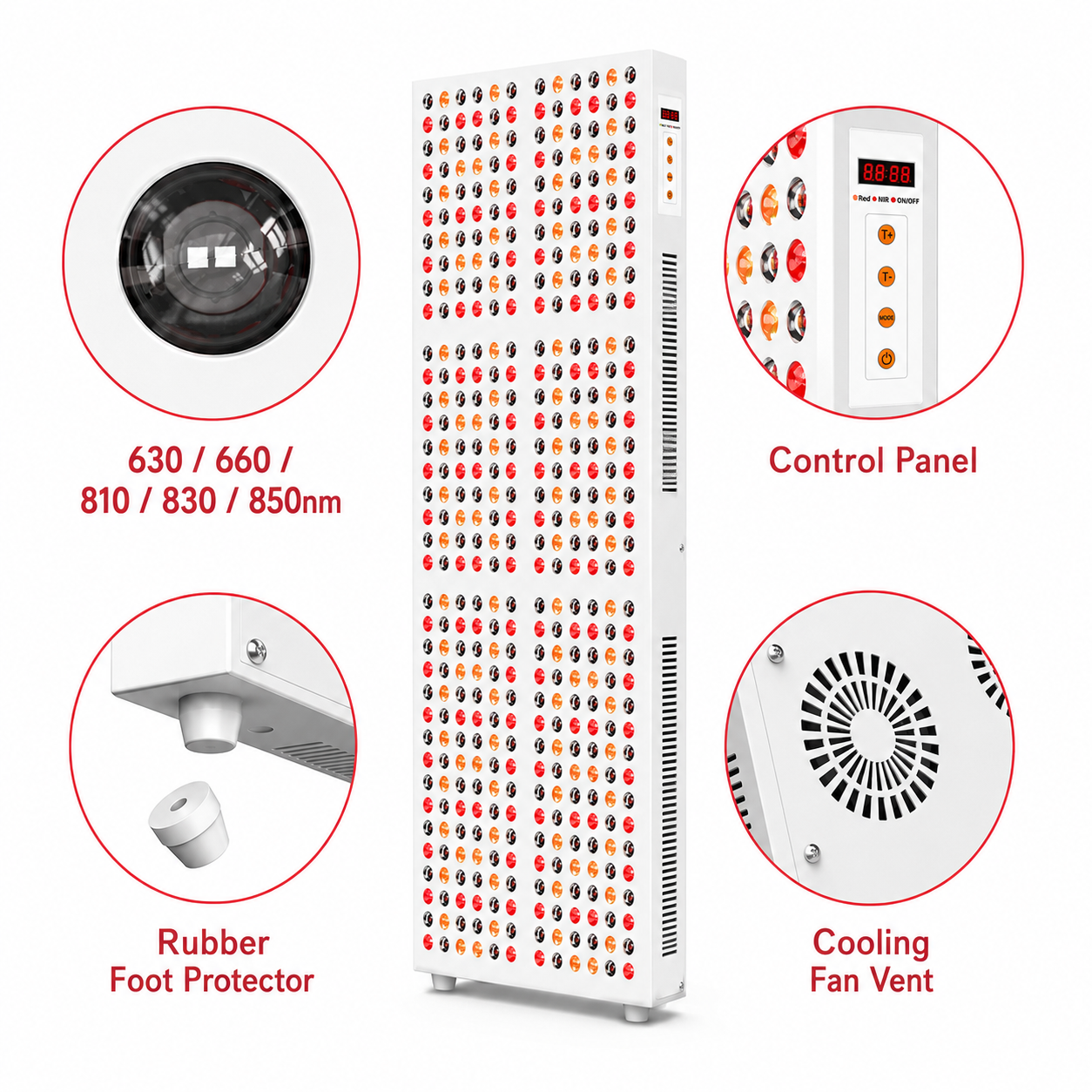

- LEDs: 480 — 630nm / 660nm / 810nm / 830nm / 850nm
- Irradiance: 194 mW/cm² at 3" (7.6 cm), falling to 109 at 18" (45.7 cm)
- LED Power Rating: 2400W · Rated Power Draw: 800W
- Dimensions: 53.9" H × 21.7" W × 7.5" D (137 × 55 × 19 cm)
- Weight: 55.1 lbs (25 kg)
- Material: Iron, white finish, rubber foot protectors
- Cooling: Built-in fan, runs automatically during use
- Warranty: 1 year

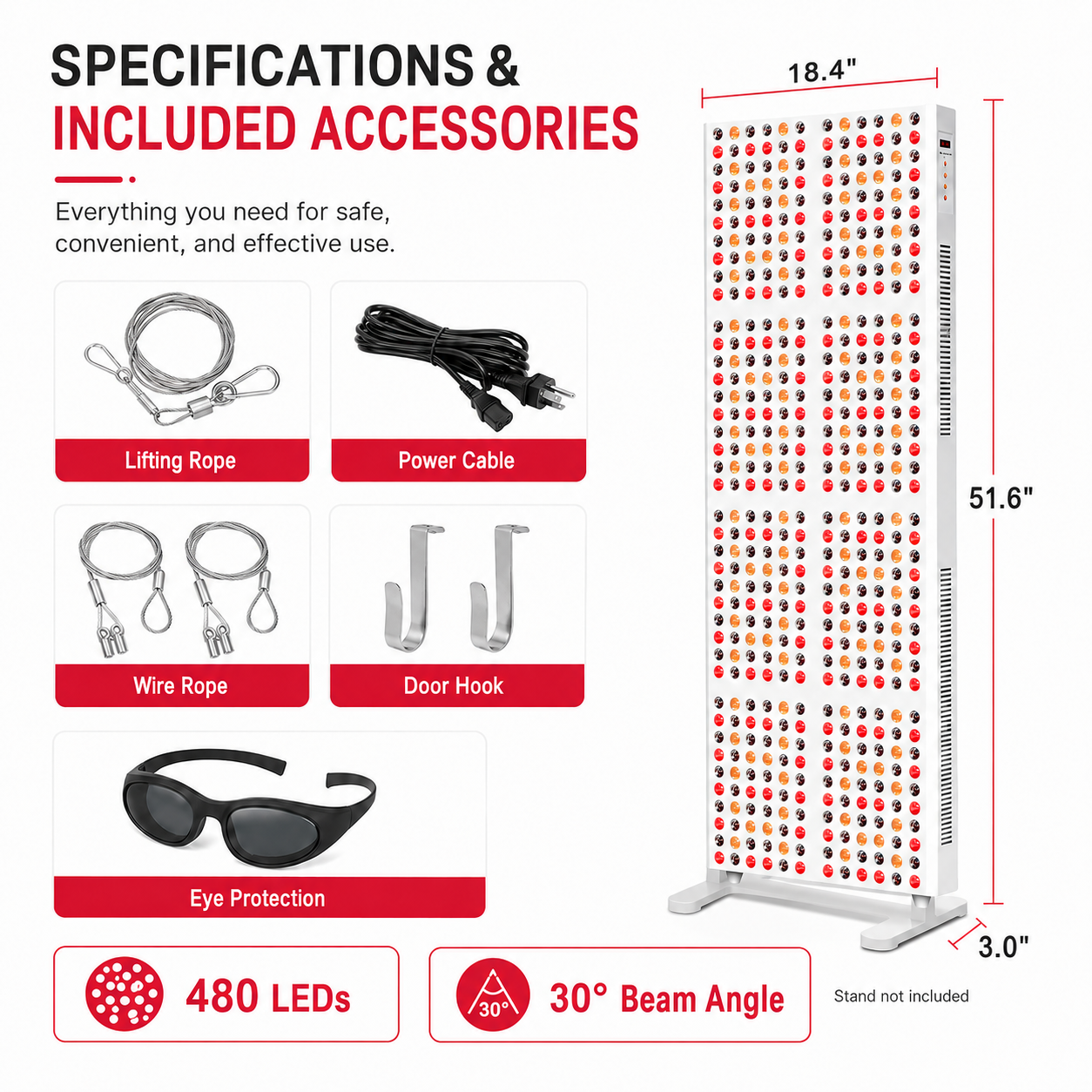

What Is Included
- iReliev 2400W panel
- Power cable
- Lifting rope
- Wire rope
- Door hooks (×2)
- Protective eye mask
- Earplugs
- User manual
How to Use
Position the panel 3 to 18 inches from the area being treated, depending on session length and coverage desired — closer for a shorter, more concentrated session, further back to cover more of the body at once. Start with 10 minutes once a day, and increase toward 20 minutes after the first week if desired. Do not exceed three sessions a day.
Wear the included eye mask if the panel is positioned near face level. The built-in cooling fan runs automatically during operation — this is normal.
Disclaimer
This product is intended for general wellness use only. It is not a medical device and is not intended to diagnose, treat, cure, or prevent any disease or medical condition. Consult a qualified healthcare provider before use if you are pregnant, photosensitive, take photosensitizing medications, or have an implanted device such as a pacemaker.
The accessory kit most panels make you buy separately
SPECIFICATION
What you are buying.
-
480 LEDs, 5 wavelengths
630nm and 660nm red plus 810nm, 830nm and 850nm near-infrared.
-
194 mW/cm² at 3 inches
Falls to 109 mW/cm² at 18 inches — both distances published.
-
800W rated draw
"2400W" on the panel is the LED power rating, not the draw.
-
Door hooks included
Plus a lifting rope and wire rope for other mounting.
-
1-year warranty
Covers manufacturing defects.
-
Earplugs included
The built-in cooling fan runs during use — earplugs are in the box if you'd rather not hear it.
HOW A SESSION RUNS
A session, start to finish.
Nothing to plumb, nothing to drain, nothing to schedule around.
Position
3 to 18 inches from the area you're treating. Closer runs a higher dose in less time; further covers more of the body at once.
Run
10 minutes to start, once a day. Wear the included eye mask if the panel sits near face level.
Build
After the first week, extend toward 20 minutes if desired. Three sessions a day is the ceiling.
One figure, two labels
